LED Drivers
12 V and 24 V DC output
Choose the voltage that matches your LED strip or neon.
24 W to 120 W
Output current from 1 A to 10 A.
Constant-voltage SMPS
Isolated AC–DC switch-mode supply, flyback topology.
Protected by design
Over-voltage, overload and short-circuit protection with auto restart. 4 kV surge withstand.
Constant-voltage LED drivers to power Visdem LED strip and neon lighting.

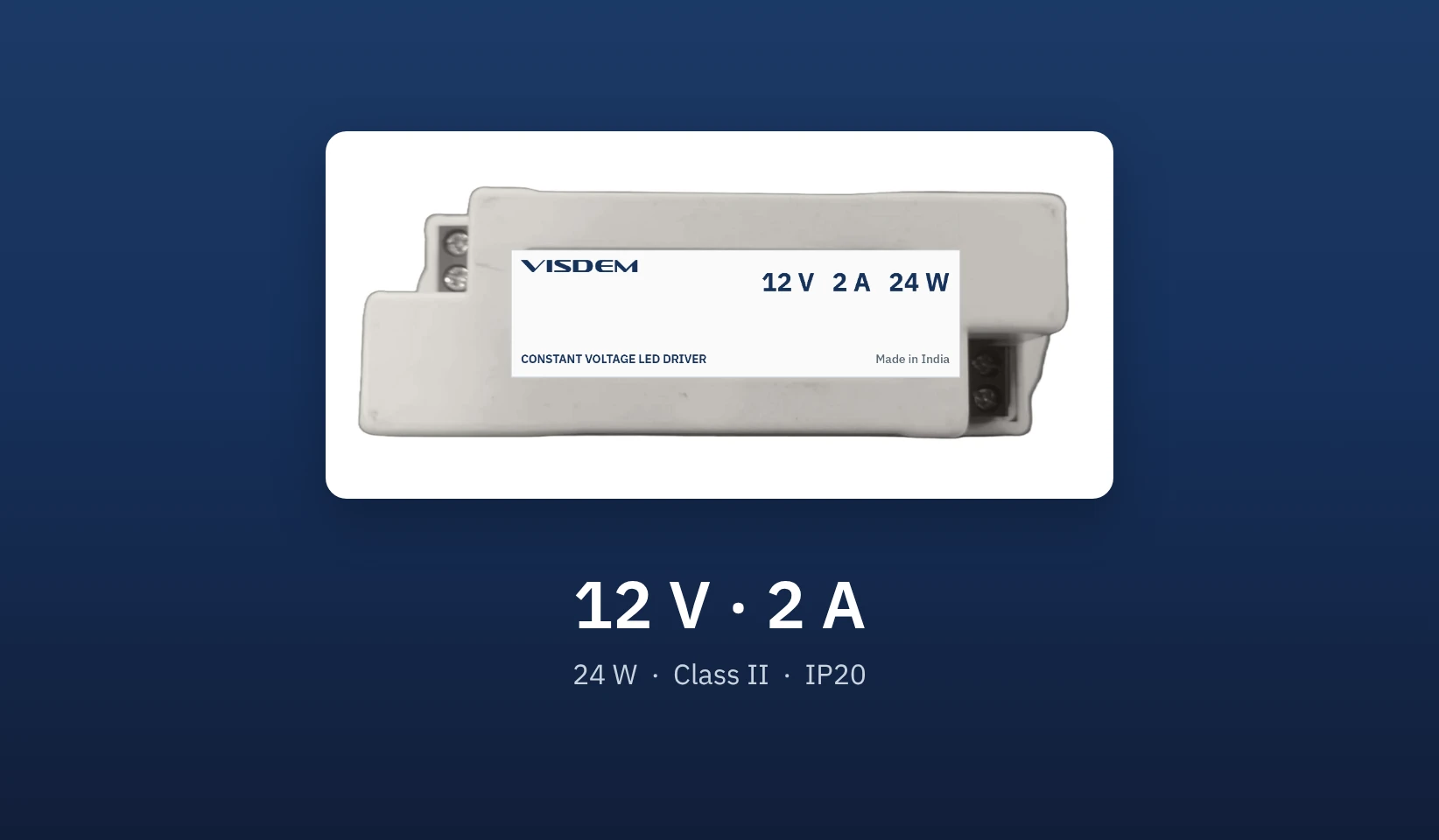

LED Driver 12 V · 2 A
Constant voltage · 12 V DC · IP20
- Output power
- 24 W
- Input
- 220–230 V AC
- Isolation
- Class II
- Housing
- PC (FR grade)
- Size
- 100 × 34 × 24 mm

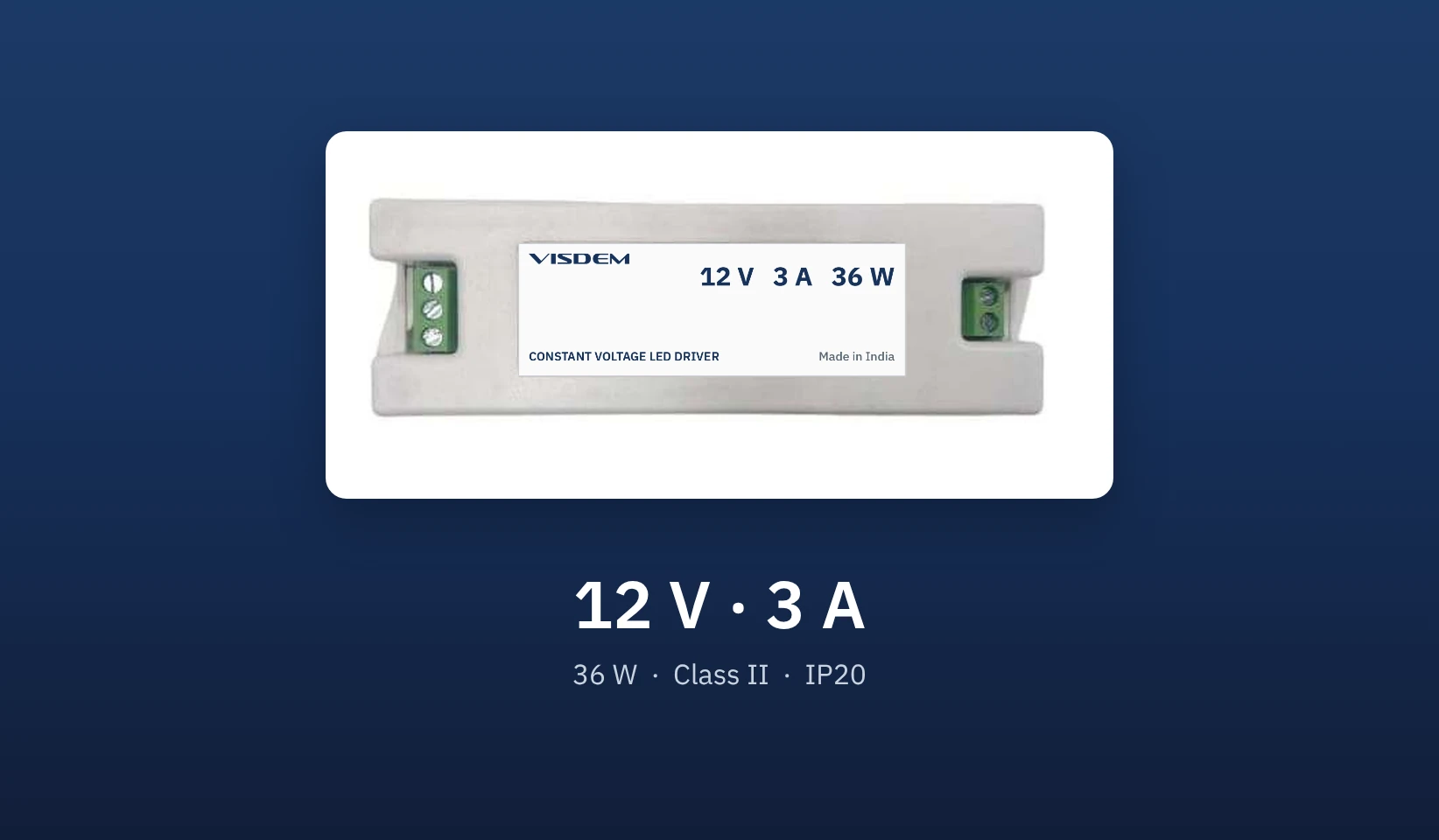

LED Driver 12 V · 3 A
Constant voltage · 12 V DC · IP20
- Output power
- 36 W
- Input
- 220–240 V AC
- Isolation
- Class II
- Housing
- PC (FR grade)
- Size
- 135 × 40 × 22 mm

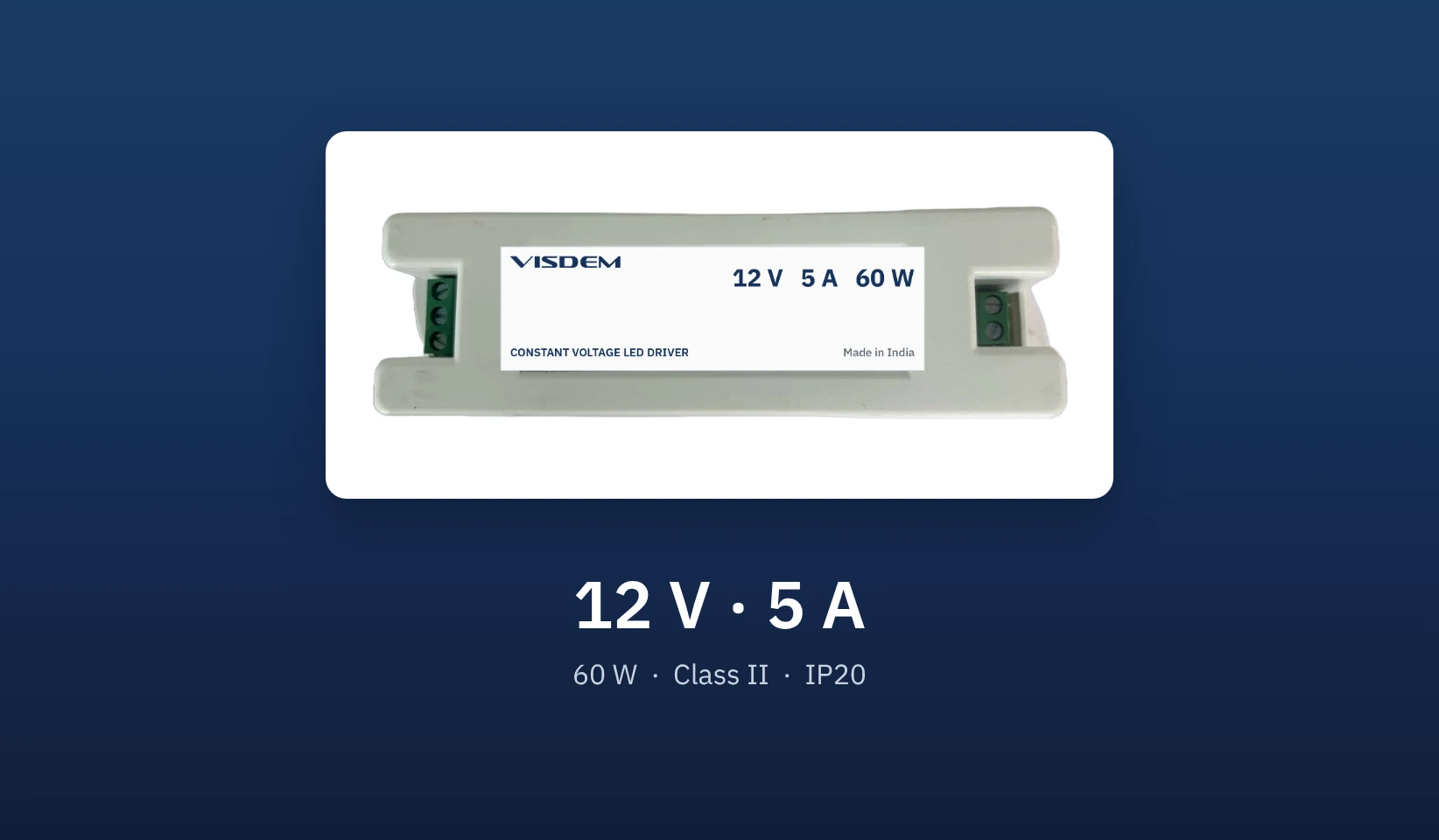

LED Driver 12 V · 5 A
Constant voltage · 12 V DC · IP20
- Output power
- 60 W
- Input
- 220–240 V AC
- Isolation
- Class II
- Housing
- PC (FR grade)
- Size
- 149.5 × 39.5 × 29.5 mm

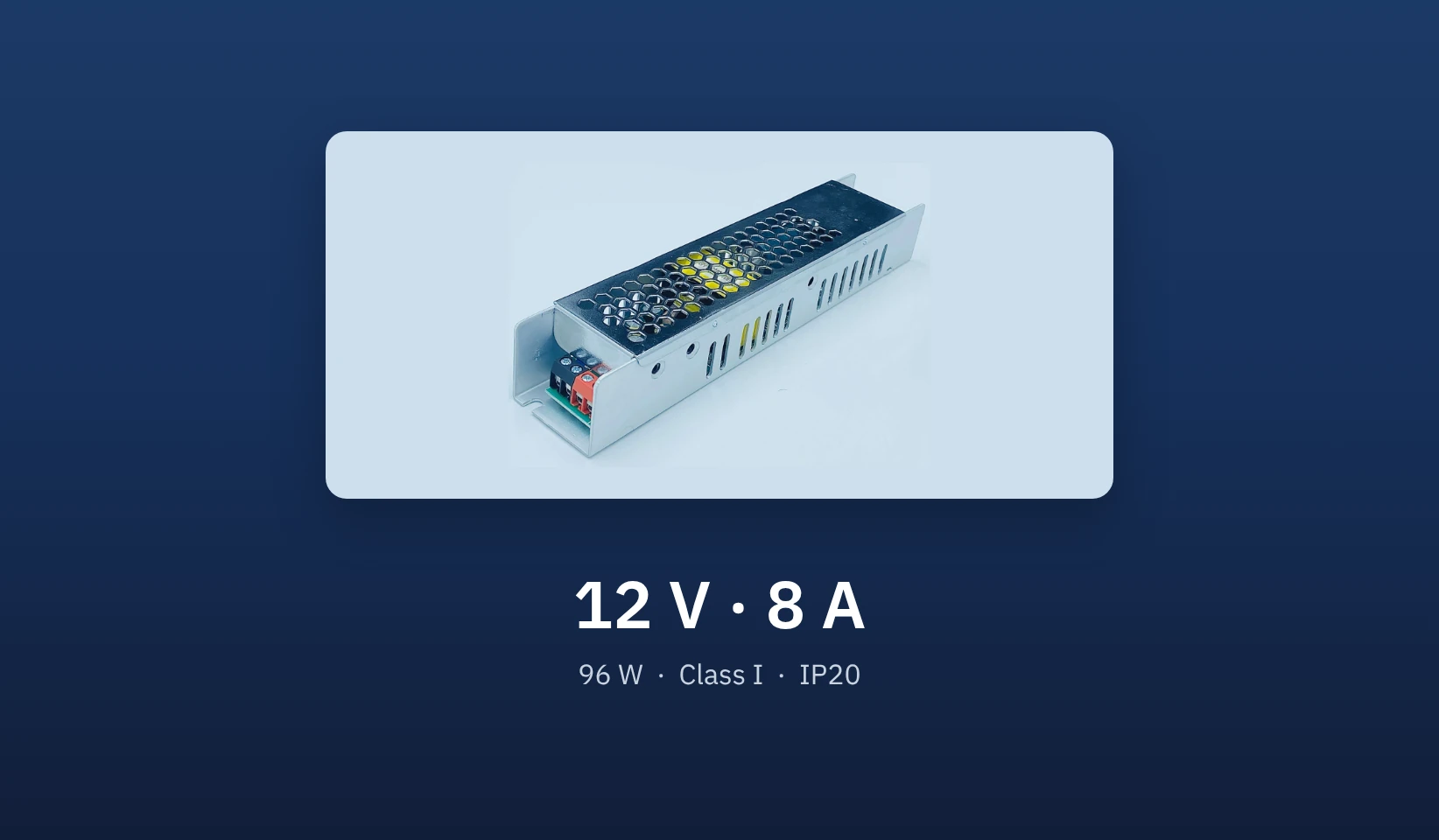

LED Driver 12 V · 8 A
Constant voltage · 12 V DC · IP20
- Output power
- 96 W
- Input
- 220–230 V AC
- Isolation
- Class I
- Housing
- Metal
- Size
- 192 × 38 × 31 mm
LED Driver 12 V · 10 A
Constant voltage · 12 V DC · IP20
- Output power
- 120 W
- Input
- 220–240 V AC
- Isolation
- Class I
- Housing
- Metal
- Size
- 192 × 38 × 31 mm

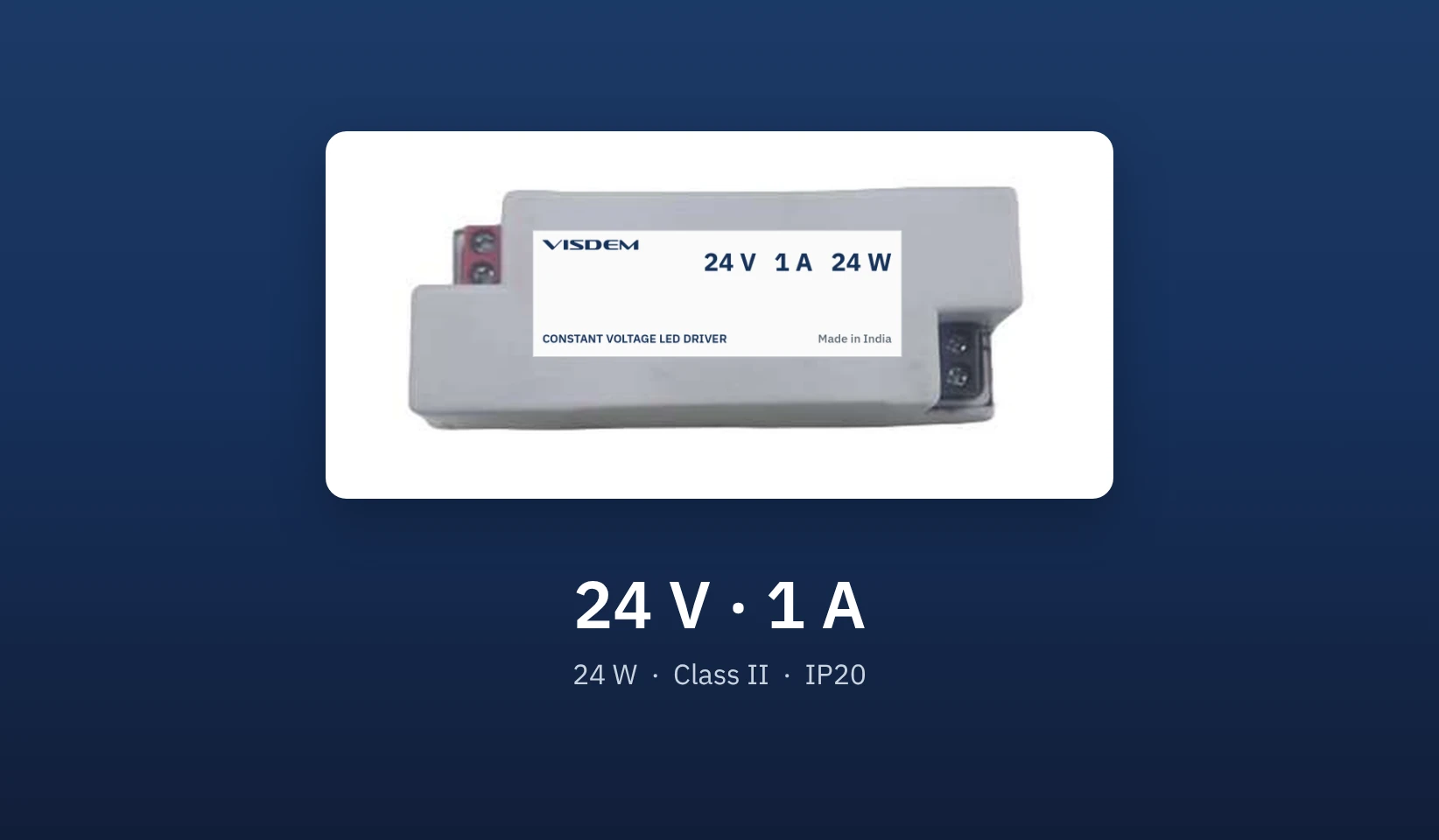

LED Driver 24 V · 1 A
Constant voltage · 24 V DC · IP20
- Output power
- 24 W
- Input
- 220–230 V AC
- Isolation
- Class II
- Housing
- PC (FR grade)
- Size
- 100 × 34 × 24 mm

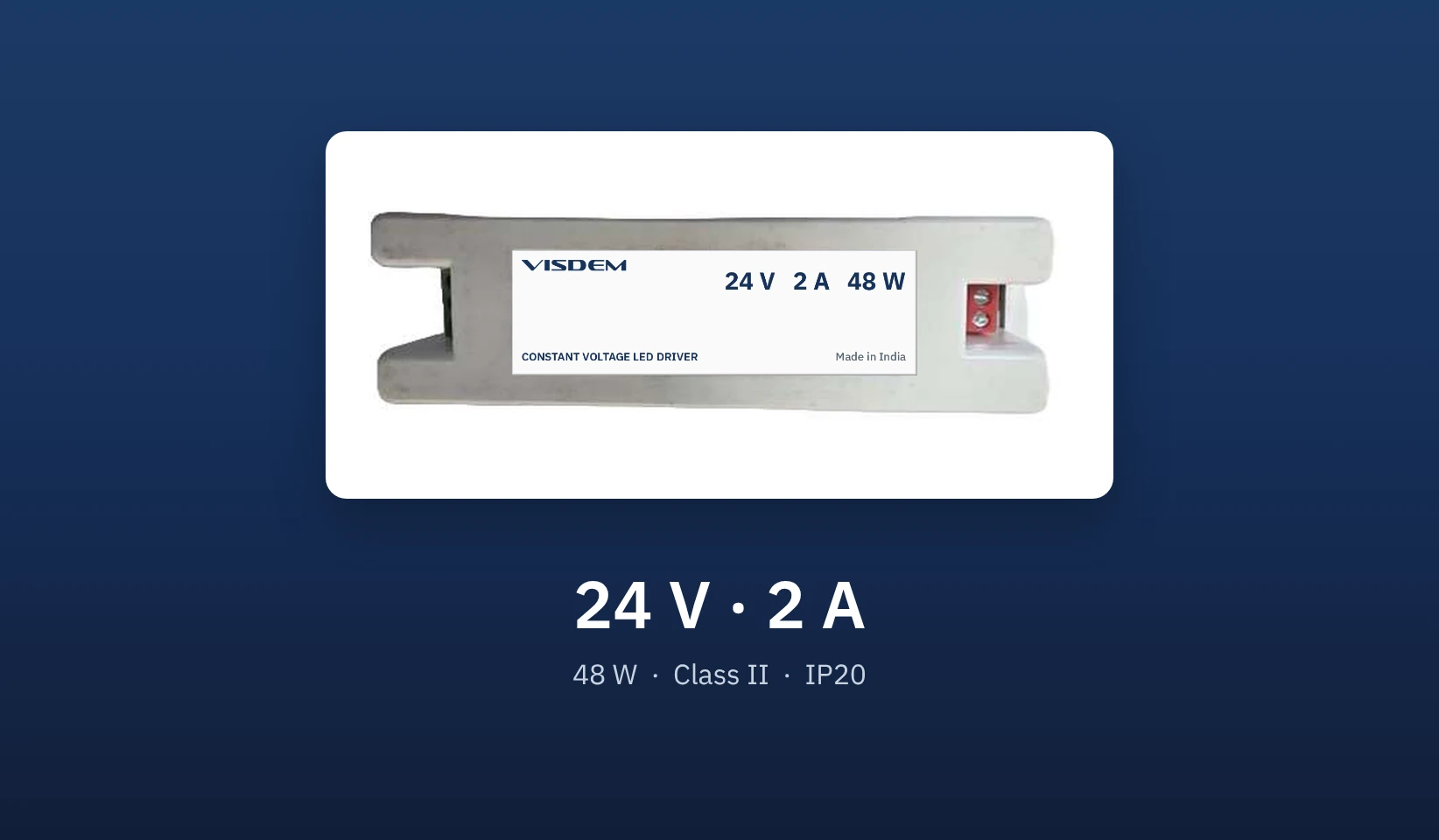

LED Driver 24 V · 2 A
Constant voltage · 24 V DC · IP20
- Output power
- 48 W
- Input
- 220–240 V AC
- Isolation
- Class II
- Housing
- PC (FR grade)
- Size
- 149.5 × 39.5 × 29.5 mm

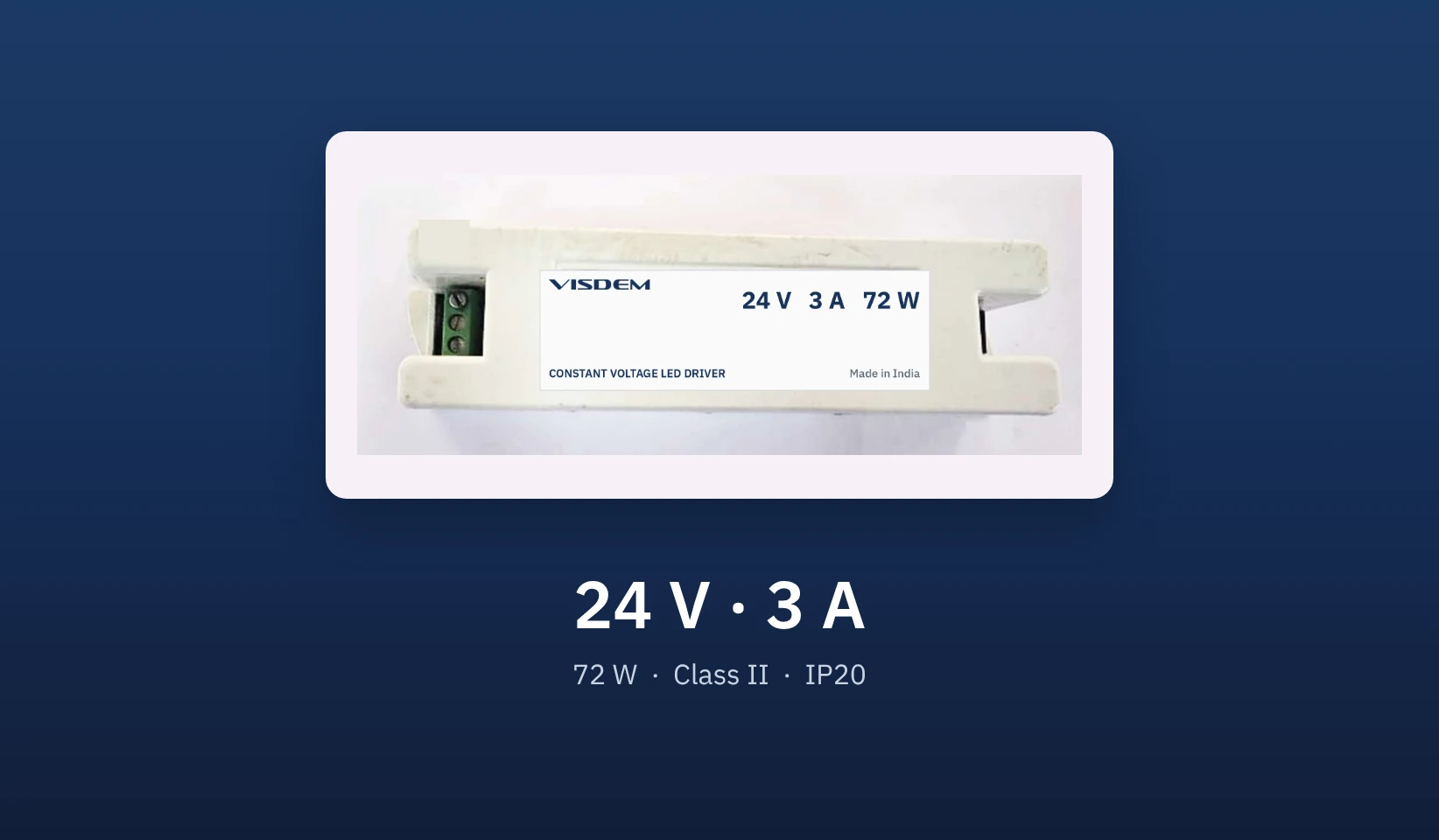

LED Driver 24 V · 3 A
Constant voltage · 24 V DC · IP20
- Output power
- 72 W
- Input
- 220–240 V AC
- Isolation
- Class II
- Housing
- PC (FR grade)
- Size
- 149.5 × 39.5 × 29.5 mm
