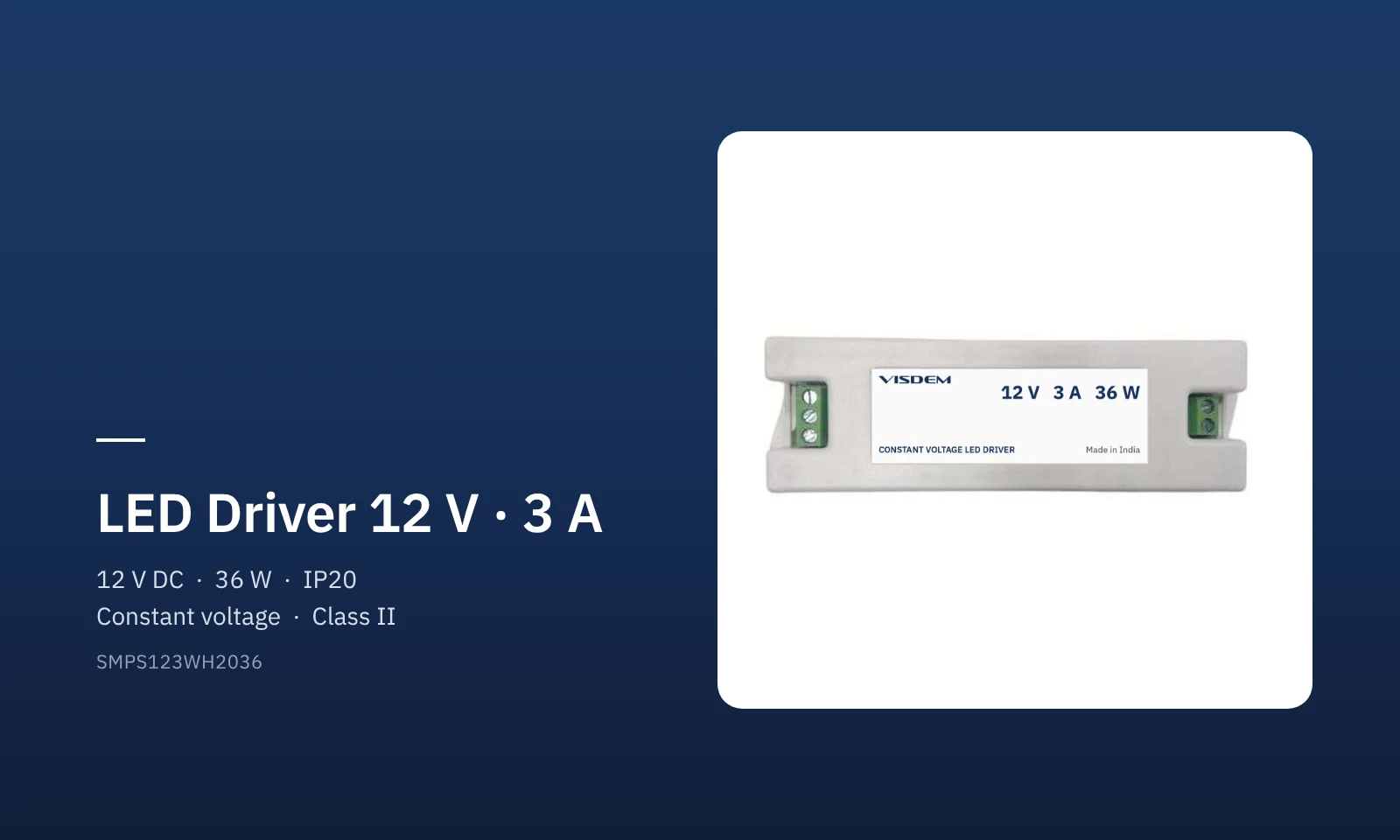

LED Driver 12 V · 3 A
Voltage
12 V DC
Current
3 A
Power
36 W
Efficiency
≥ 80 %
Isolation
Class II
Ingress
IP20
INPUT
AC voltage range
220–240 V AC
220–240 V AC
Operating voltage range
100–380 V AC
100–380 V AC
AC input current
–
–
Power factor
≥ 0.5
≥ 0.5
Rated input power
42.2 W ±10%
42.2 W ±10%
Efficiency
≥ 80 %
≥ 80 %
Frequency
–
–
High-voltage endurance
380 V AC, 8 h
380 V AC, 8 h
MECHANICAL
Housing material
PC (FR grade)
PC (FR grade)
Housing colour
White
White
Dimensions L × W × H
135.0 × 40.0 × 22.0 mm (±1.0 mm)
135.0 × 40.0 × 22.0 mm (±1.0 mm)
Weight
99.9 ±10 g
99.9 ±10 g
OUTPUT
Output voltage
12 V ±10%
12 V ±10%
Output current
≤ 3 A
≤ 3 A
Output power, max.
36 W ±10%
36 W ±10%
PROTECTION
Over-voltage / overload
Yes
Yes
Short circuit
Yes, with auto restart
Yes, with auto restart
Topology
Flyback
Flyback
Dielectric strength
3.7 kV
3.7 kV
Insulation resistance
4.0 MΩ at 500 V DC
4.0 MΩ at 500 V DC
Isolation class
Class II
Class II
Surge withstand
4 kV
4 kV
KEY RATINGS
IP20
Class II
4 kV surge
3.7 kV hi-pot
Flyback
Auto restart
OVP / OLP
PF ≥ 0.5
ENVIRONMENTAL
Operating ambient
–
–
Case temperature, max.
–
–
Operating humidity
10 to 95 % RH
10 to 95 % RH
COMPLIANCE
Safety standard
–
–
BIS / CRS registration
–
–
RoHS
–
–
LIFETIME AND WARRANTY
Rated life
–
–
Warranty
–
–
