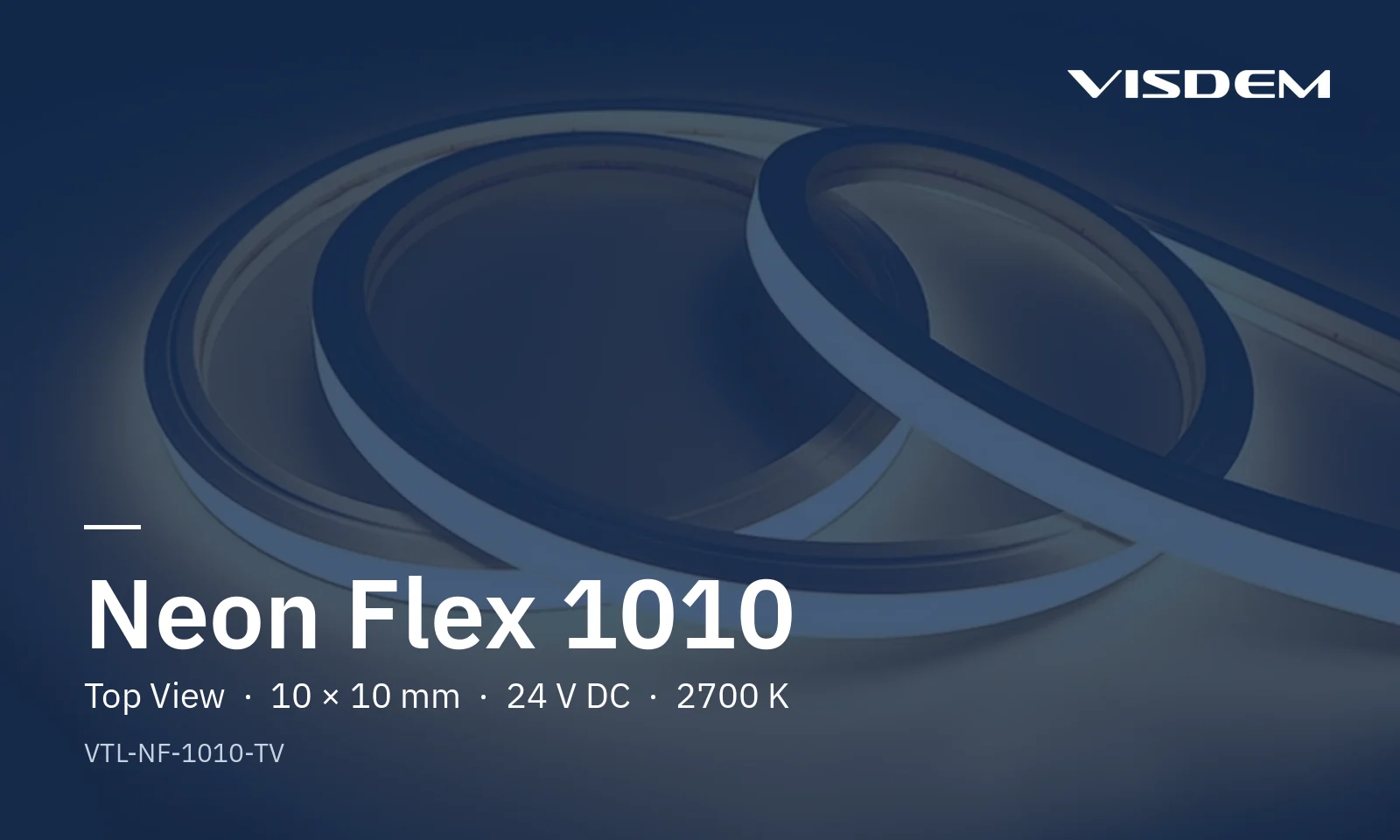

Neon Flex 1010
Power
12 W/m
Output
600lm/m
Efficacy
50 lm/W
Colour Temperature
2700K
CRI
≥90
Ingress
IP67
ELECTRICAL
Supply voltage
24 V DC +/-10%
24 V DC +/-10%
Supply current
0.5 A/m
0.5 A/m
Power consumption
12 W/m +/-10%
12 W/m +/-10%
Protection class
Class III
Class III
Max run, single / double
9000 / 18000 mm
9000 / 18000 mm
Control
Yes
Yes
Recommended driver
24V 2.5A
24V 2.5A
PHOTOMETRIC
Luminous flux
600 lm/m
600 lm/m
Luminous efficacy
50 lm/W
50 lm/W
Colour
2700K
2700K
Colour rendering
≥90
≥90
Colour consistency
≤3SDCM
≤3SDCM
Beam angle
120°
120°
Measurement basis
LM-79, finished product
LM-79, finished product
MECHANICAL

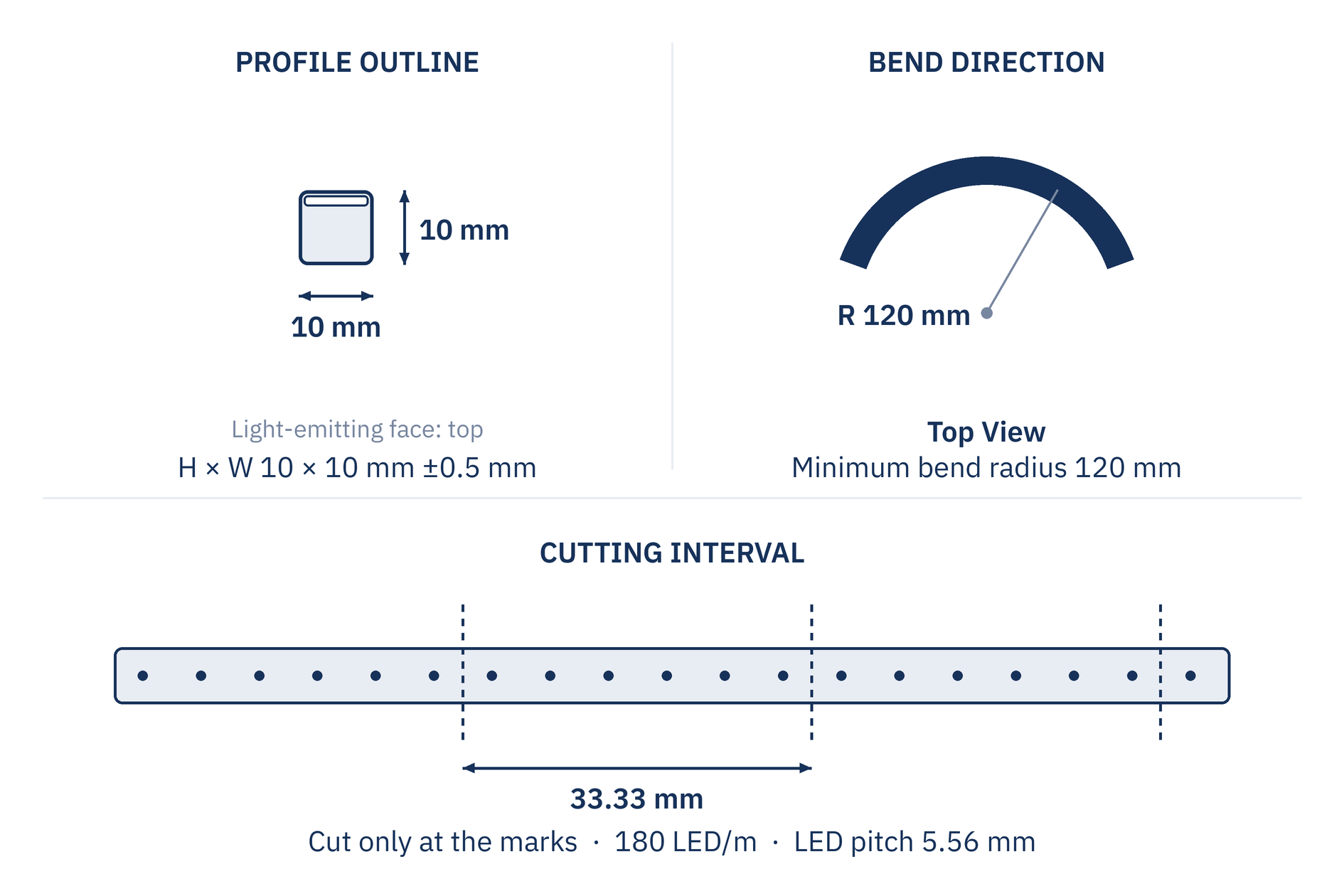

Dimensions H × W
10 x 10 mm +/-0.5 mm
10 x 10 mm +/-0.5 mm
Reel length
5000 mm
5000 mm
LED density / pitch
180 LED/m · 5.56 mm
180 LED/m · 5.56 mm
Cutting interval
33.33 mm
33.33 mm
Min. bend radius
120 mm
120 mm
Bend direction
Top View
Top View
Body material
Silicone · Shore A 60
Silicone · Shore A 60
FPC copper
2.5 oz
2.5 oz
Weight
150 g/m
150 g/m
COMPLIANCE AND RATINGS
CE
RoHS
IP67
IK10
BIS
IEC 62471
CRI 90
5 YR
ENVIRONMENTAL
Ingress / impact
IP67 · IK10
IP67 · IK10
Operating ambient
-40°C to 65°C
-40°C to 65°C
Storage temperature
-40°C to 70°C
-40°C to 70°C
UV / flame resistance
Yes
Yes
Application
Indoor and outdoor
Indoor and outdoor
INSTALLATION
Mounting
Clamp, steel mesh or aluminium profile
Clamp, steel mesh or aluminium profile
Termination
Moulded wire tails · 200 mm
Moulded wire tails · 200 mm
End cap
Moulded end cap
Moulded end cap
LIFETIME AND WARRANTY
Lifetime
>50,000 h
>50,000 h
Warranty
5 years
5 years
