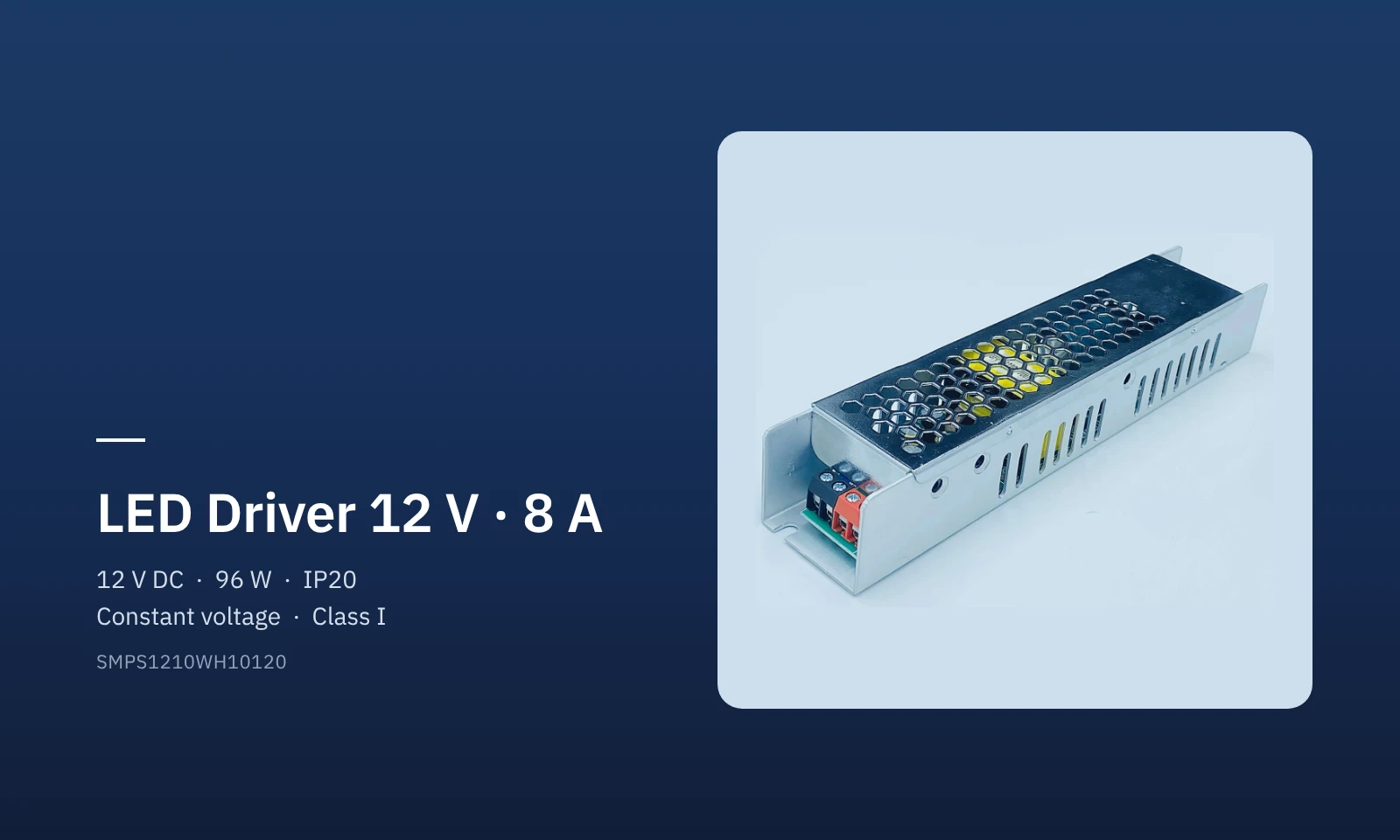

LED Driver 12 V · 8 A
Voltage
12 V DC
Current
8 A
Power
96 W
Efficiency
≥ 80 %
Isolation
Class I
Ingress
IP20
INPUT
AC voltage range
220–230 V AC
220–230 V AC
Operating voltage range
160–390 V AC
160–390 V AC
AC input current
< 2.0 A
< 2.0 A
Power factor
≥ 0.5
≥ 0.5
Rated input power
115 W ±10%
115 W ±10%
Efficiency
≥ 80 % at 230 V AC
≥ 80 % at 230 V AC
Frequency
–
–
High-voltage endurance
380 V AC, 4 h
380 V AC, 4 h
MECHANICAL
Housing material
Metal
Metal
Housing colour
White
White
Dimensions L × W × H
192 × 38 × 31 mm (±5 mm)
192 × 38 × 31 mm (±5 mm)
Weight
203 ±10 g
203 ±10 g
OUTPUT
Output voltage
12 V ±10%
12 V ±10%
Output current
≤ 8 A
≤ 8 A
Output power, max.
96 W ±10%
96 W ±10%
PROTECTION
Over-voltage / overload
Yes
Yes
Short circuit
Yes, with auto restart
Yes, with auto restart
Topology
Flyback
Flyback
Dielectric strength
1.5 kV
1.5 kV
Insulation resistance
4 MΩ at 500 V DC
4 MΩ at 500 V DC
Isolation class
Class I
Class I
Surge withstand
4.0 kV
4.0 kV
KEY RATINGS
IP20
Class I
4.0 kV surge
1.5 kV hi-pot
Flyback
Auto restart
OVP / OLP
PF ≥ 0.5
ENVIRONMENTAL
Operating ambient
–
–
Case temperature, max.
–
–
Operating humidity
10 to 95 % RH
10 to 95 % RH
COMPLIANCE
Safety standard
–
–
BIS / CRS registration
–
–
RoHS
–
–
LIFETIME AND WARRANTY
Rated life
–
–
Warranty
–
–
